plot_signals Module ​

These functions help visualize individual, or large batches of signal data. This helps visually see what is happening in a signal to identify outliers, and determine the kinds of filters that need to be applied.

Module Structure ​

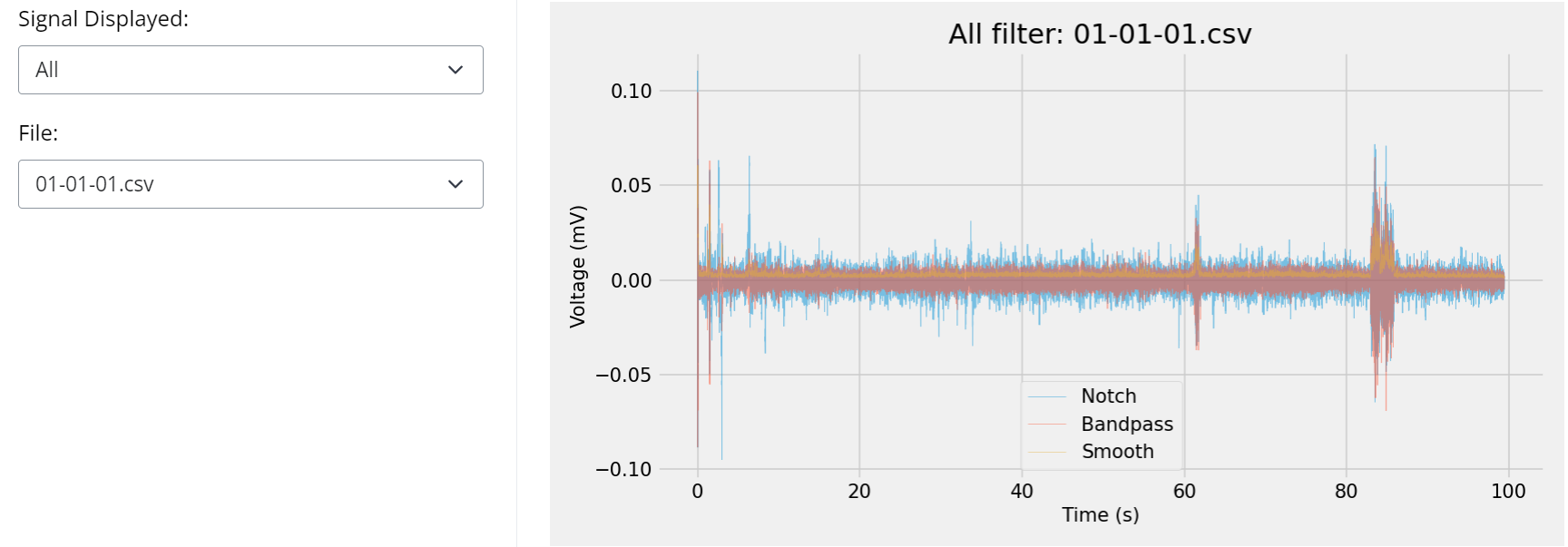

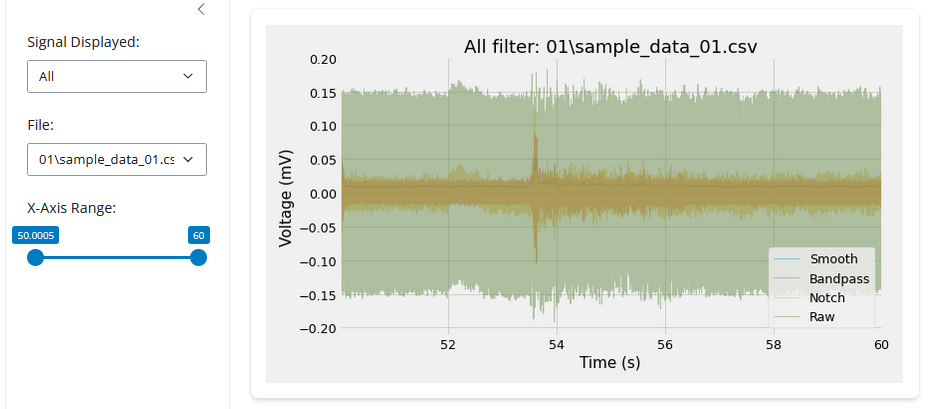

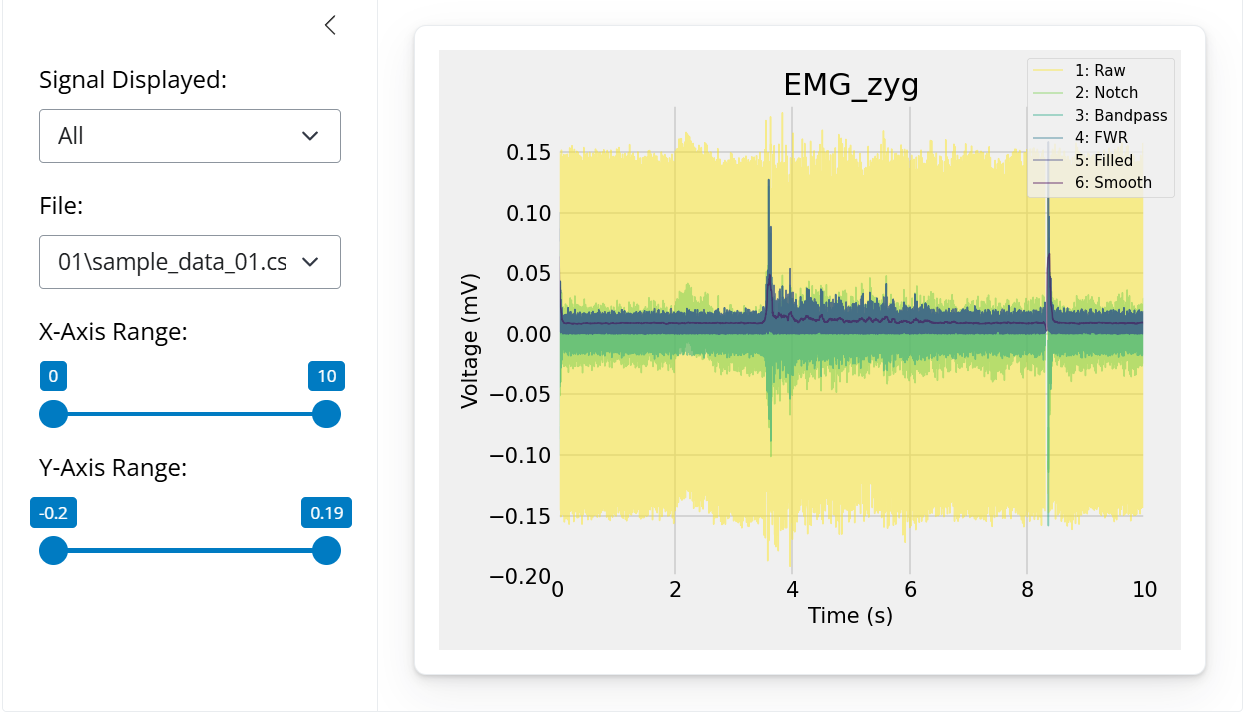

plot_dashboard ​

Description:

Generate a Shiny dashboard of different processing stages for a given column of signal data.

Uses a path_names filepath dictionary (see make_paths). Has a side bar menu to navigate the file and stage being displayed.

Each filepath in the dictionary is expected to contain the same named files to display them at the different stages. To avoid error, the function ignores the 'Feature' filepath.

'CTRL + C' can be entered in the terminal to end the display of the dashboard and resume code execution.

python
plot_dashboard(path_names:dict, col:str, units:str, file_ext:str='csv', use_mask:bool=False, auto_run:bool=True)

Parameters:

path_names: dict-str

  • A dictionary of file locations with keys for stage in the processing pipeline. The function will generate graphs for as many paths are provided in the dictionary. The dictionary can be created with the make_paths function.

col: str

  • The column of the files to display in the visualization.

units: str

  • Units to use for the y axis of the plot, should be the same units used for the values in col.

file_ext: str, optional ('csv')

  • File extension for files to read. Only visualizes files with this extension. The default is 'csv'.

use_mask: bool, optional (False)

  • An option to visualize the NaN mask If True, it will set values to NaN based on the NaN mask. If False, it will use the unaltered values of the column ignoring the NaN mask. The default is False.

autorun: bool, optional (True)

  • An option to automatically see the visualization. If True, it will run the visual and open it in the default browser. If False, it will return the visualization object. The default is True.

Raises

An exception is raised if col is not a column of a signal file.

An exception is raised if a file contained in the first file directory (path_names[0]) is not found in the other file directories.

An exception is raised if a file could not be read.

An exception is raised if an unsupported file format was provided for file_ext.

Returns

app: None or shiny.app

  • If auto_run is True, returns None. If False, returns a shiny.App instance.

Example:

python
# Create a plot of each stage
path_names = EMGFlow.make_paths()
EMGFlow.make_sample_data(path_names)
EMGFlow.clean_signals(path_names, 2000)

col = 'EMG_zyg'
units = 'mV'

EMGFlow.plot_dashboard(path_names, col, units)
